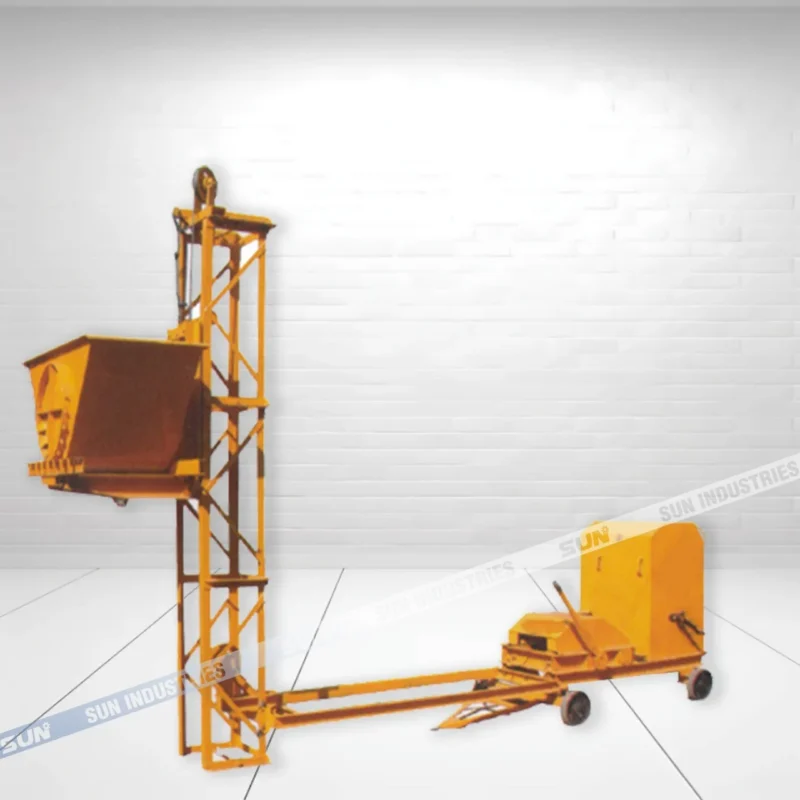

Mini Crane

Technical Specification

Capacity 150 kg. 300 kg.
Height 30-60 Meters 30-120 Meters
Boom length 6.5 ft. 6.5 ft.
Rotation 360 Degree 360 Degree
Prime Mover 3 HP 3 Phase Break motor 5 HP 3 Phase Break motor
Wire Rope 8 mm 10 mm
Bucket Size 645 X 645 X 272 750 X 750 X 342
Weight 350 kg. 480 kg.
