Sand Screening Machine: Sand Separation Streamlined

A sand screening machine is a crucial piece of equipment used widely in construction, mining, and landscaping to separate sand particles based on size and remove impurities such as stones, pebbles, and organic matter. Its main function is to deliver clean, graded sand that meets the quality standards required for tasks such as concrete mixing, plastering, bricklaying, or laying foundations. The machine functions through a combination of mechanical parts that work together to carry out the screening process efficiently and continuously.

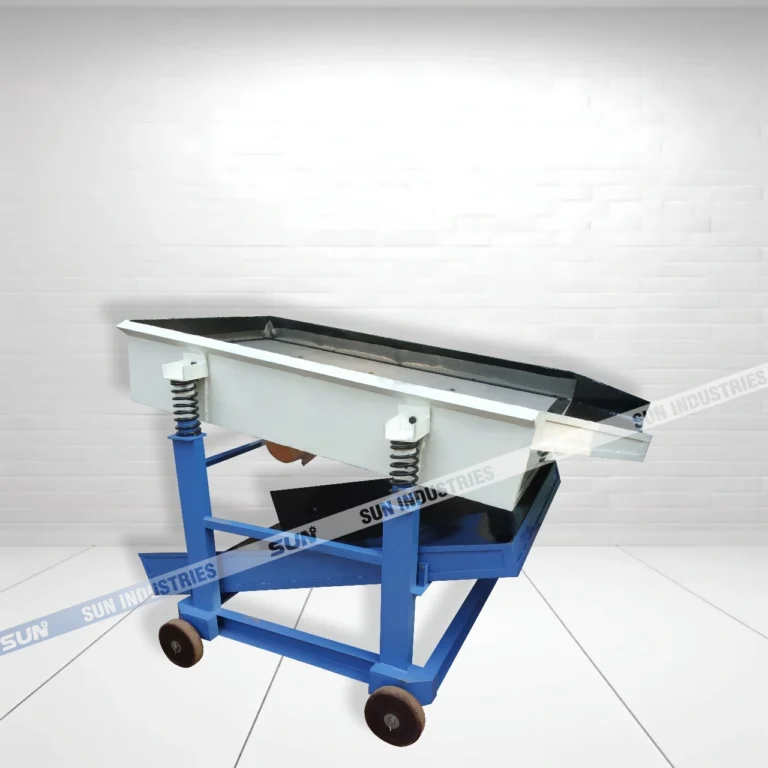

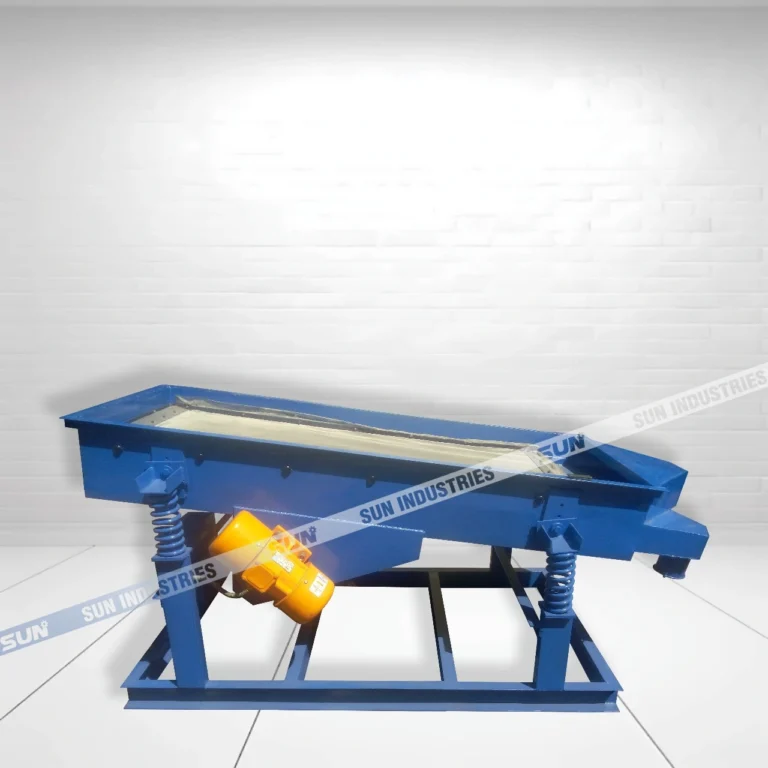

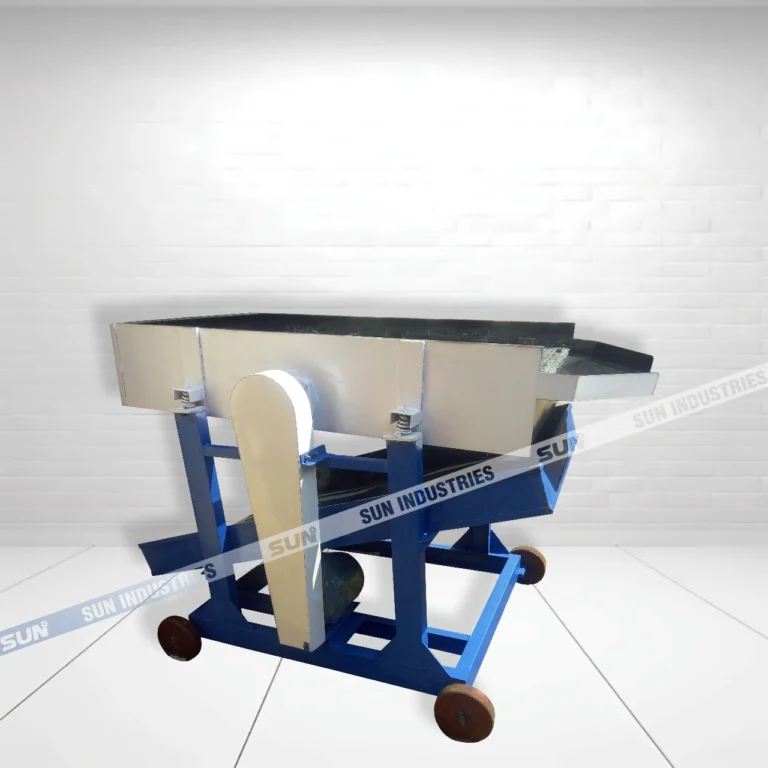

At the heart of the machine is the screening surface, which is typically a metal mesh or perforated plate with uniformly sized holes. This screen determines the size of particles that are allowed to pass through, enabling effective grading of the sand. The sand is loaded onto the machine through a feeding hopper, a funnel-shaped inlet located at the top. This hopper directs the sand onto the screening surface, ensuring that the material is spread out evenly for better separation. Attached to the machine is a vibrating mechanism – powered by an electric motor or sometimes a petrol/diesel engine – that shakes the screen at high speed. This vibration is critical to the machine’s function, as it moves the sand across the screen while breaking up clumps and allowing smaller particles to pass through the mesh openings.

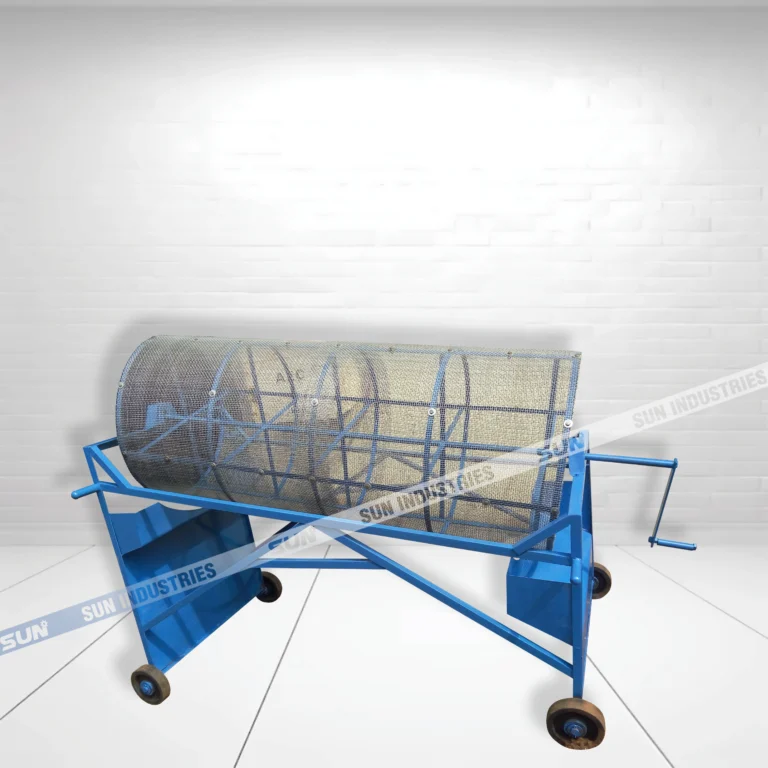

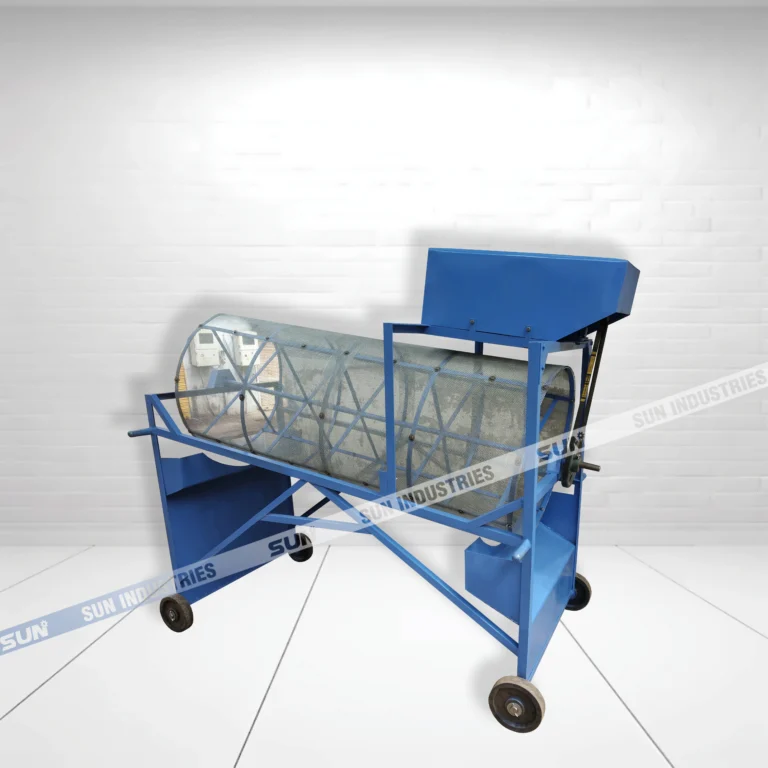

The machine is mounted on a rigid metal frame or chassis that provides the structural support necessary to withstand constant vibration and movement. Some models are equipped with wheels, making them portable and suitable for use at multiple job sites. Beneath the screening mesh is a discharge outlet where the filtered, fine sand collects. Coarser particles or unwanted debris that do not pass through the mesh are automatically diverted to a separate waste outlet or side chute. In rotary drum-type screening machines, the sand moves through a cylindrical mesh drum that rotates on its axis, separating particles through centrifugal force and gravity rather than vibration.

The entire operation is continuous and automated – once the machine is switched on, it can screen large volumes of sand with minimal manual intervention. The consistent motion ensures that there is no clogging or accumulation on the screen, thereby improving both efficiency and the quality of the output. Some advanced models also feature multiple layers of screening mesh for different grades of sand to be filtered in a single run. Overall, the sand screening machine enhances productivity on-site, ensures material consistency, and reduces labor costs, making it an indispensable tool in any modern construction workflow.
